Cadre & suspension

• Cadre KELLYS ESTIMA series – advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT
• Fourche ROCK SHOX Recon Silver RL (27.5) Boost, 100 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
• Tailles S / M

Système électrique

• Moteur SHIMANO EP6, 85 Nm, 36 V
• Batterie KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ
• Commande (assistance) SHIMANO SW-EN600-L for assist

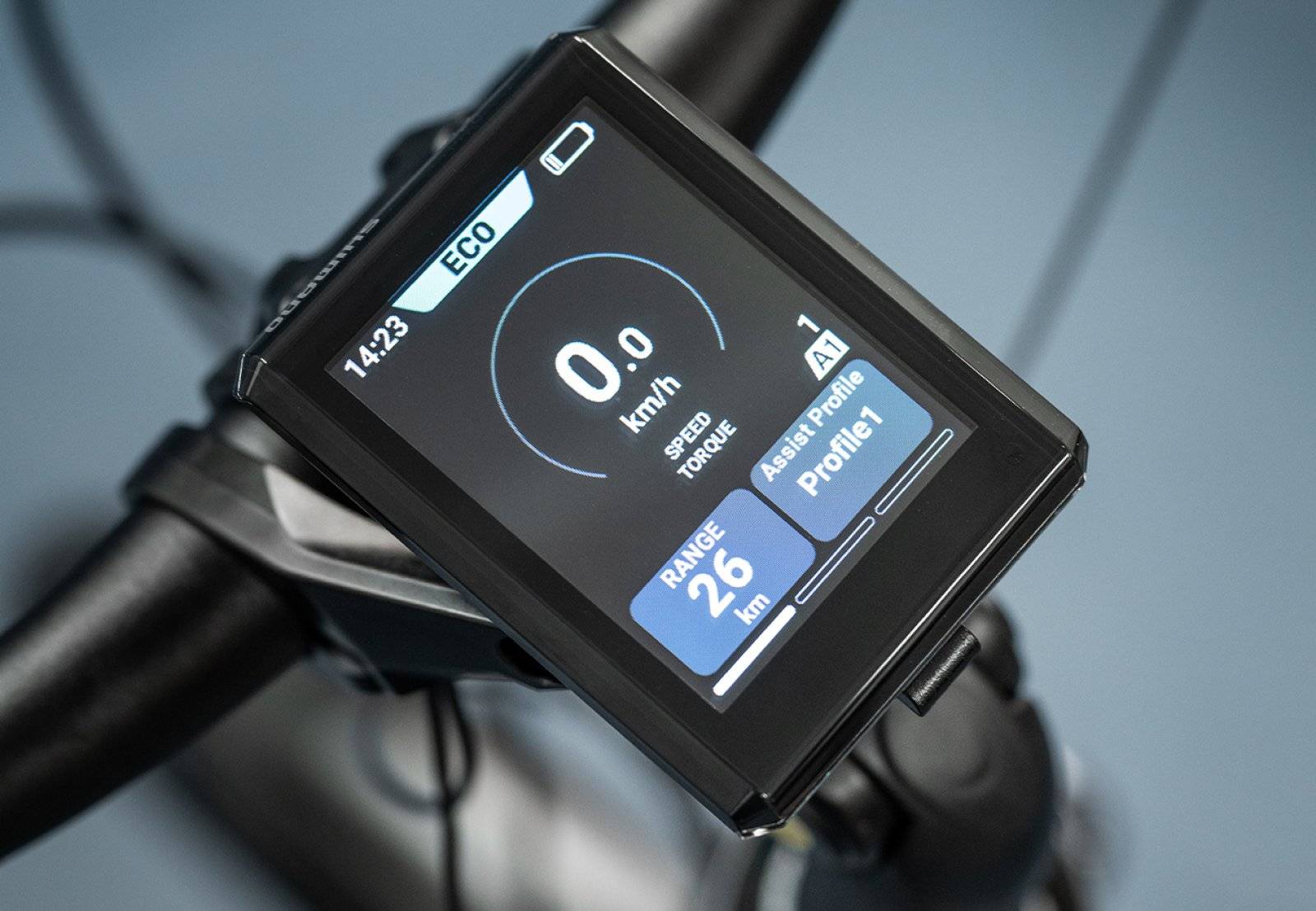

• Écran SHIMANO SC-EN610

Transmission

• Pédalier SHIMANO EM600 / CR-ET600 (38T) – length 170 mm
• Commande Di2 (changement de vitesses) SHIMANO SW-EN600-R Di2 for shifting
• Vitesses 5
• Roue libre for internal hub Nexus 24T
• Chaîne SHIMANO CN-HG71
• Pédales plastic

Freinage

• Freins SHIMANO Deore MT410 Hydraulic Disc
• Leviers SHIMANO Deore BL-M4100
• Disques 180 mm front / 180 mm rear

Roues & pneus

• Moyeux SHIMANO MT400-B / SHIMANO Nexus C7050-5D Di2 Disc Center Lock (32 holes)
• Jantes KLS Valor 3 Disc 584x30 (32 holes)
• Rayons stainless steel black
• Pneus SCHWALBE Al Grounder Performance 65-584 (27.5"x2.60) RaceGuard, ADDIX, ReflectiveLine
• Garde-boue alloy

Poste de pilotage

• Jeu de direction FSA 1.5 semi-integrated
• Potence adjustable PROMAX a-head – diam 28.6 mm / bar bore 31.8 mm / length 85 mm
• Cintre KALLOY RiseBar – diam 31.8 mm / width 640 mm
• Poignées KLS Wave 2Density ergonomic

Selle & tige de selle

• Tige de selle suspension KALLOY – diam 30.9 mm / length 300 mm (S), 350 mm (M)
• Selle SELLE ROYAL Essenza Relaxed

Équipement

• Éclairage avant TRELOCK Airflow 100
• Éclairage arrière TRELOCK Duo Flat
• Accessoires carrier, adjustable kickstand, bell
